PLC-507 4G/WIFI Industrial IOT Gateway
Key words:
ETUNG TECHNOLOGY CO., LTD.
PLC-507 is an industrially designed product, it provides program download and data acquisition functionalities for PLCs that have RJ-45 Ethernet interface, or RS232/RS485 serial interfaces. It supports PLCs from Siemens, Mitsubishi, Omron, Panasonic, Delta, Fatek, etc. PLC-507 connects with 4G/5G network, and with PLC programming tools or SCADA software to implement remote program download and data acquisition.
|
Model |
Network |
|
PLC-507-W0 |
WIFI and WAN cable networks, use WAN by default |
|
PLC-507-W4 |
4G/3G/2G and WIFI/WAN cable networks, use WAN by default |
|
PLC-507-W5 |
5G/4G and WIFI/WAN cable networks, use WAN by default |
Industrial-grade 4G/5G/WIFI Plug&Play 5 LAN&1RS-232&1RS-485
- 产品描述
- 图右
-
- Commodity name: PLC-507 4G/WIFI Industrial IOT Gateway
PLC-507 is an industrially designed product, it provides program download and data acquisition functionalities for PLCs that have RJ-45 Ethernet interface, or RS232/RS485 serial interfaces.
PLC-507 Brief Introduction PLC-507 is an industrially designed product, it provides program download and data acquisition functionalities for PLCs that have RJ-45 Ethernet interface, or RS232/RS485 serial interfaces. It supports PLCs from Siemens, Mitsubishi, Omron, Panasonic, Delta, Fatek, etc. PLC-507 connects with 4G network, and with PLC programming tools or SCADA software to implement remote program download and data acquisition.
PLC-507 has extended data interfaces with four LANs, one WAN, one RS232 and one RS485 interface. Ethernet interfaces and serial interfaces can be used at the same time. Multiple data interfaces greatly facilitate devices’ network access at customers’ spot.
PLC-507 not only supports 4G/5G networks from China’s three mobile operators, but also supports WAN or WIFI network: in case cable network is available, WAN port can be used to access cable network; and in case WIFI is available, PLC-507 can be configured to access internet via WIFI. 4G/5G, WAN and WIFI are all supported by PLC-507, this greatly facilitates customer’s project deployment that customers do not have to choose different devices from different suppliers because of different network access at the spot. This can not only save procurement cost, but also reduce maintenance effort for the projects.
PLC-507 has WIFI functionality as well, and supports 802.11b/g/n protocol. In theory the highest speed can be 150Mbps. Mobile phones, PCs or other devices that have WIFI functionality can bind PLC-507’s WIFI access point and share Internet access via PLC-507. This greatly extends the number of devices that can connect with PLC-507 at the same time.
PLC-507 is easy to use, and is plug-n-play without any configuration. Together with eTung’s eYun platform and Virhub/Vircom software, it can be easy to integrate with PLC programming software, and there is no extra integration effort. PLC-507 is stable and easy-to-use, thus greatly facilitates project deployment.

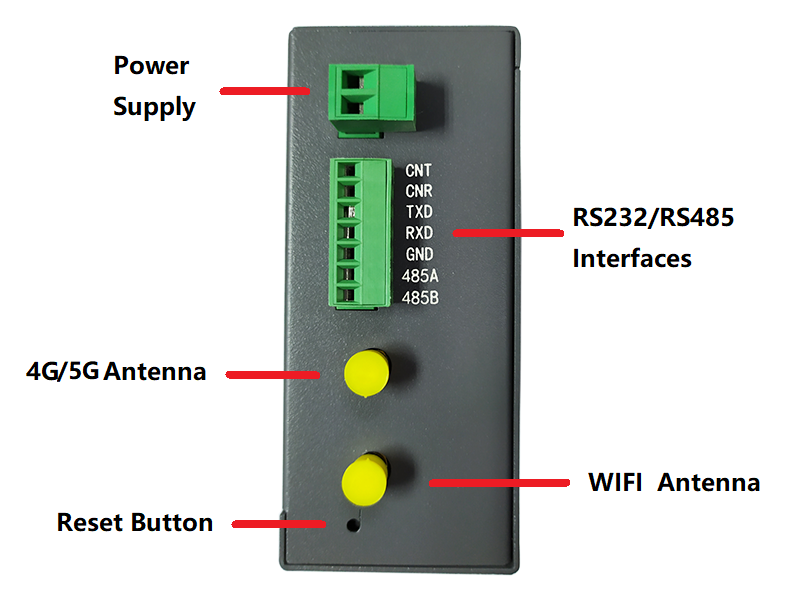

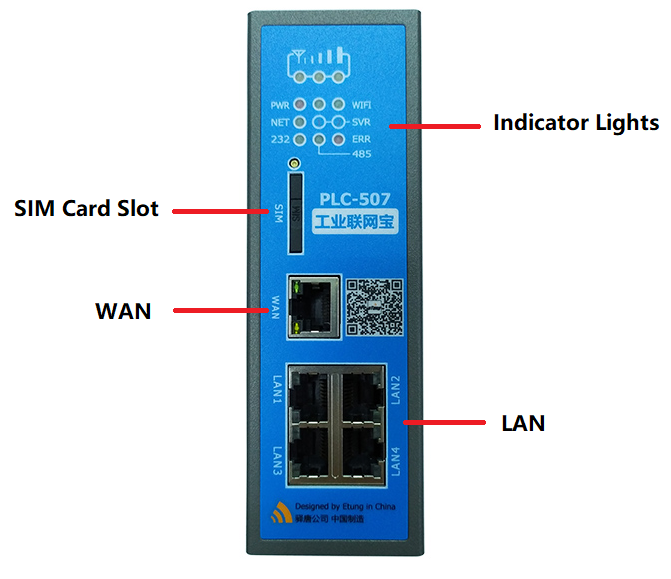

Product Outlook

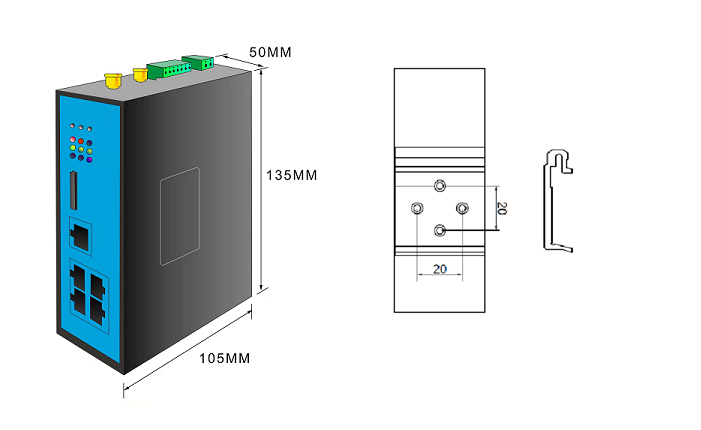

Dimension
PLC-507 dimension
Technical Parameters Basic Parameters Power Supply: +12 ~ +48V wide range of voltage input
Power Connector: terminalCPU Frequncey: 1GHz(PLC-507S), 300MHz(PLC-507)
RAM: 256MB(PLC-507S), 128MB(PLC-507)
Network:
PLC-507-W0：WIFI/WANPLC-507-W4:
FDD-LTE/TDD-LTE
UMTS/DC-HSDPA/HSUPA/WCDMA/
EDGE/GPRS/GSM
WIFI/WANPLC-507-W5:
NR5G-SA
FDD-LTE/TDD-LTE
WIFI/WAN
Frequency:
PLC-507-W4:
FDD-LTE B1/B3/B5/B8
TDD-LTE B34/B38/B39/B40/B41
UMTS/DC-HSDPA/HSUPA/WCDMA B1/B8
GSM/GPRS/EDGE B3/B8
WIFI IEEE 802.11n/g/b: 2.4G/5GHzPLC-507-W5:
NR5G-SA n1/n3/n5/n8/n28/n41/n78/n79
FDD-LTE B1/B3/B5/B8
TDD-LTE B34/B38/B39/B40/B41Data Interface: one RS232 and one RS485, with terminal interfaces; one RJ45 WAN and four RJ45 LAN interfaces
Working current: 350 mA@+12V DC
Standby current: 200 mA@+12V DC
Temperature: -30ºC ~ +80ºC
Humidity: 95%@+40ºC
Dimension: 106*46*142mm (excluding antenna and back panel)Basic Functions
Support NAT
Support DHCP server
Support DNS Proxy
Support port forwarding
Support DMZ host(IP address mapping)
Support configuring static route table
Support real-time speed display of wireless network
Support configuring with serial port, telnet and web interface
Support DTU function, Ethernet and serial interfaces can be used at the same time
Support virhub function
Support agent clientTypical Usecases

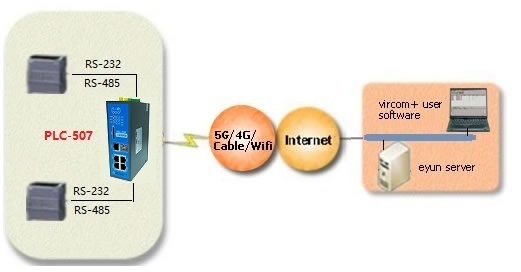

Implement PLC remote monitoring and program update via PLC-507’s serial functionality

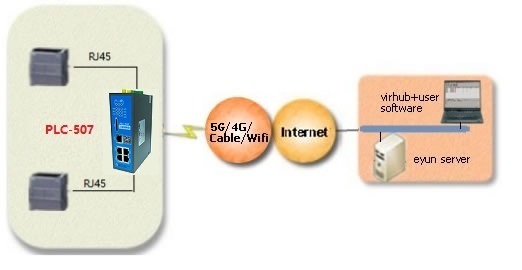

Implement PLC remote monitoring and program update via PLC-507’s virhub functionality

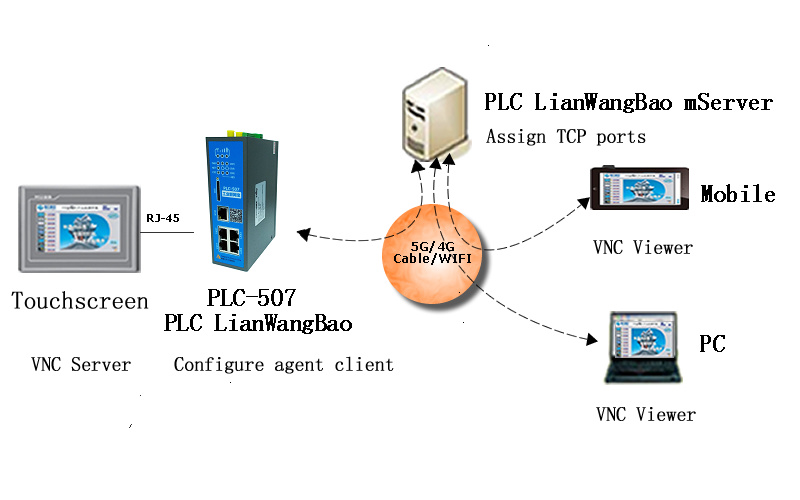

Implement remote control of touchscreen desktop via PLC-507’s agent client functionality and VNC software
-
PLC-507 is an industrially designed product, it provides program download and data acquisition functionalities for PLCs that have RJ-45 Ethernet interface, or RS232/RS485 serial interfaces. It supports PLCs from Siemens, Mitsubishi, Omron, Panasonic, Delta, Fatek, etc. PLC-507 connects with 4G/5G network, and with PLC programming tools or SCADA software to implement remote program download and data acquisition.
Model
Network
PLC-507-W0
WIFI and WAN cable networks, use WAN by default
PLC-507-W4
4G/3G/2G and WIFI/WAN cable networks, use WAN by default
PLC-507-W5
5G/4G and WIFI/WAN cable networks, use WAN by default
Industrial-grade 4G/5G/WIFI Plug&Play 5 LAN&1RS-232&1RS-485
