PLC-501 4G/WIFI Industrial IOT Gateway
Key words:
ETUNG TECHNOLOGY CO., LTD.
PLC-501 is an industrially designed product, and is especially used with PLCs. PLC-501 provides program download and data acquisition functionalities for PLCs that have RJ-45 Ethernet interface, or RS232/RS485 serial interfaces. It supports PLCs from Siemens, Mitsubishi, Omron, Panasonic, Delta, Fatek, etc. PLC-501 connects with 4G network, and with PLC programming tools or SCADA software to implement remote program download and data acquisition.
|
Model |
Network |
|
PLC-501-W0 |
WIFI and WAN cable networks, use WAN by default |
|
PLC-501-N4 |
LTE Cat4 and WAN cable networks, use WAN by default |
Industrial-grade 4G/WIFI Plug&Play 1LAN & 1RS-232/485
- 产品描述
- 图右
-
- Commodity name: PLC-501 4G/WIFI Industrial IOT Gateway
PLC-501 is an industrially designed product, and is especially used with PLCs. PLC-501 provides program download and data acquisition functionalities for PLCs that have RJ-45 Ethernet interface, or RS232/RS485 serial interfaces.
PLC-501 Brief Introduction PLC-501 is an industrially designed product, and is especially used with PLCs. PLC-501 provides program download and data acquisition functionalities for PLCs that have RJ-45 Ethernet interface, or RS232/RS485 serial interfaces. It supports PLCs from Siemens, Mitsubishi, Omron, Panasonic, Delta, Fatek, etc. PLC-501 connects with 4G network, and with PLC programming tools or SCADA software to implement remote program download and data acquisition.
PLC-501 has stand-up shape with more compact size, compared with PLC-502. It has one RJ-45 Ethernet interface, one RS232 and one RS485 serial interface, and Ethernet interface and serial interfaces can be used at the same time.
PLC-501-N4 supports 4G netw ork from China’s three mobile operators, and it can also access Internet via WAN cable network. When cable network is available, it can use WAN cable network.
PLC-501-W0 has WIFI functionality as well, and supports 802.11b/g/n protocol. In theory the highest speed can be 150Mbps. Mobile phones, PCs or other devices that have WIFI functionality can bind PLC-501’s WIFI access point and share Internet access via PLC-501. This greatly extends the number of devices that can connect with PLC-501 at the same time.
PLC-501-W0 can use WAN or WIFI network: in case cable network is available, WAN (LAN1) port can be used to access cable network; and in case WIFI is available, PLC-501 can be configured to access Internet via WIFI.
PLC-501 is easy to use, and is plug-n-play without any configuration. Together with eTung’s eYun platform and Virhub/Vircom software, it can be easy to integrate with PLC programming software, and there is no extra integration effort. PLC-501 is stable and easy-to-use, thus greatly facilitates project deployment.

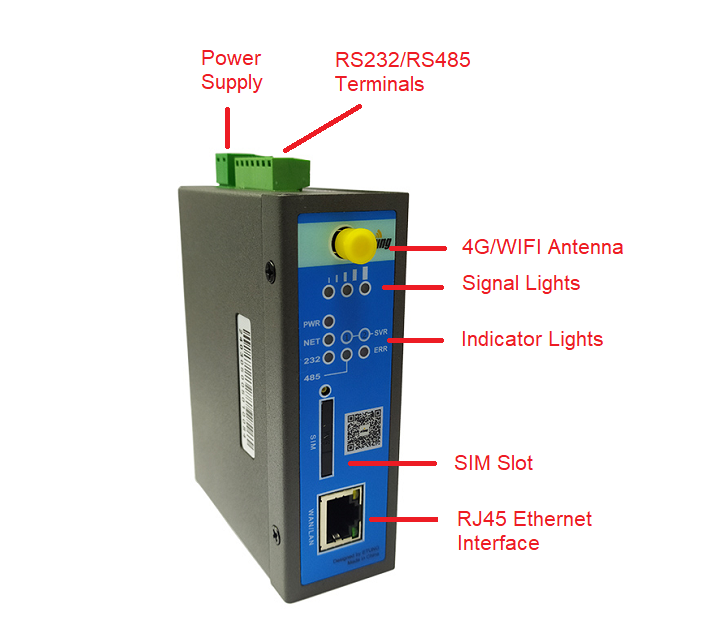

Product Outlook

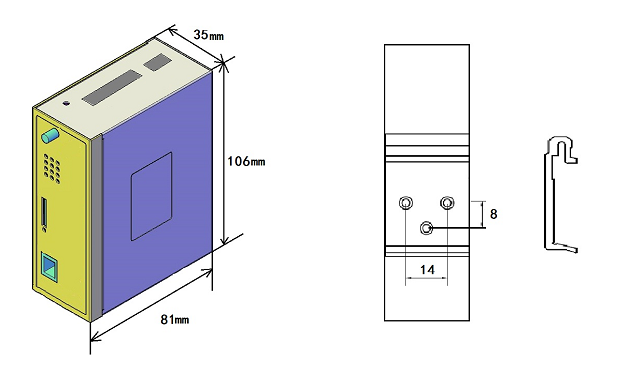

Dimension
PLC-501 dimension
Technical Parameters Basic Parameters Power Supply: +5 ~ +48V wide range of voltage input
Power Connector: terminal
Network & Frequency:
PLC-501-N4：
FDD-LTE B1/B3/B5/B8
TDD-LTE B34/B38/B39/B40/B41
UMTS/DC-HSDPA/HSUPA/WCDMA B1/B8
GSM/GPRS/EDGE B3/B8
WANPLC-501-W0:
WIFI IEEE 802.11n/g/b: 2.4G/5GHz
WANData Interface: RS232 and RS485 , two RJ45 Ethernet interfaces
Working current:
180 mA@+12V DC (PLC-501-N4), 150 mA@+12V DC (PLC-501-W0)
Standby current:
140 mA@+12V DC (PLC-501-N4), 130 mA@+12V DC (PLC-501-W0)
Temperature: -40ºC ~ +85ºC
Humidity: 95%@+40ºC
Dimension: 81*35*106mm (excluding antenna and handle)
Weight: 316gBasic Functions
Support NAT
Support DHCP server
Support DNS Proxy
Support port forwarding
Support DMZ host(IP address mapping)
Support configuring static route table
Support real-time speed display of wireless network
Support configuring with serial port, telnet and web interface
Support serial port DTU function, Ethernet and serial interfaces can be used at the same time
Support agent clientTypical Usecases
Implement PLC remote monitoring and program update via PLC-501’s serial functionality

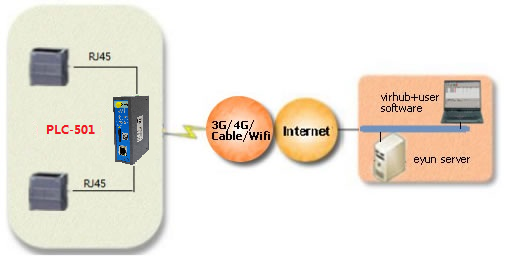

Implement PLC remote monitoring and program update via PLC-501’s virhub functionality

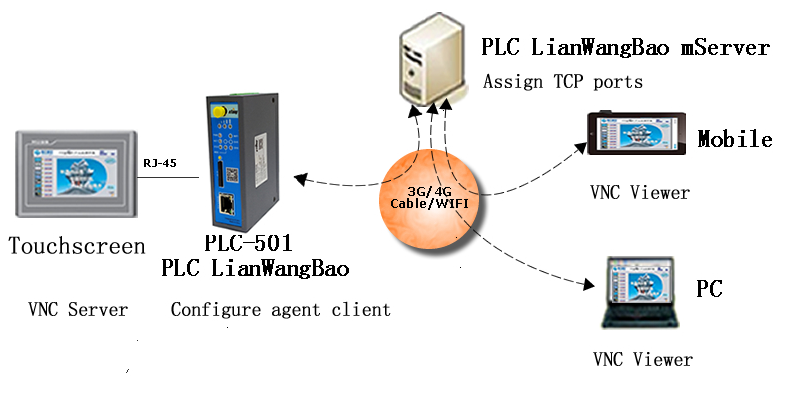

Implement remote control of touchscreen desktop via PLC-501’s agent client functionality and VNC software
-
PLC-501 is an industrially designed product, and is especially used with PLCs. PLC-501 provides program download and data acquisition functionalities for PLCs that have RJ-45 Ethernet interface, or RS232/RS485 serial interfaces. It supports PLCs from Siemens, Mitsubishi, Omron, Panasonic, Delta, Fatek, etc. PLC-501 connects with 4G network, and with PLC programming tools or SCADA software to implement remote program download and data acquisition.
Model
Network
PLC-501-W0
WIFI and WAN cable networks, use WAN by default
PLC-501-N4
LTE Cat4 and WAN cable networks, use WAN by default
Industrial-grade 4G/WIFI Plug&Play 1LAN & 1RS-232/485
