MR-900T 4G Wireless Router
Key words:
ETUNG TECHNOLOGY CO., LTD.
Industrial-grade 4G/3G/2G High-speed Plug&Play
- 产品描述
- 图右
-
- Commodity name: MR-900T 4G Wireless Router
The MR-900T is a very cost-effective industrial 4G router. The device comes with an RJ-45 network port and supports full Netcom 4G network (7 modes).
MR-900T Overview MR-900T, developed by ETUNG, is a high speed plug & play wireless data device or as named as 4G wireless router. For small office, remote site or mobile office, MR-900T is an ideal device to access the Internet for email, web browsing, ftp and image/video transfer. It creates a fast, secure, reliable and easy-to-use wireless network for small business. It is also good for applications such as AMR or remote control.
MR-900T is based on ARM 9 platform, built-in 4G LTE wireless module, embedded Linux system and TCP/IP protocol stack.
Featured by high speed bandwidth, embedded protocols such as TCP/UDP/IP, NAT, DHCP and proxy, supporting static routing, DMZ host, port forwarding, VPN and etc, MR-900T provides high performance and stable network connection via its RJ45 or RS232 port. It has been used for many applications such as mobile banking, security surveillance, power metering, environmental monitoring and many other fields.

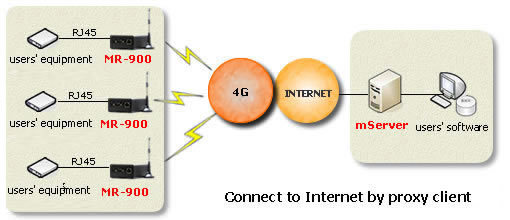

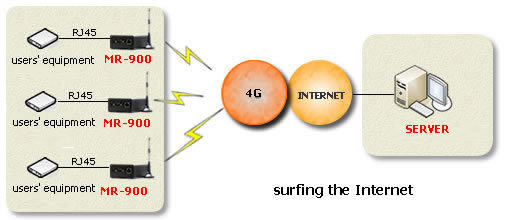

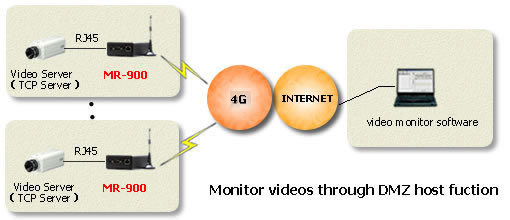

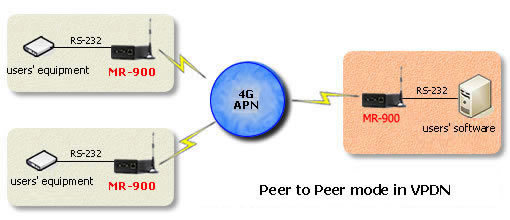

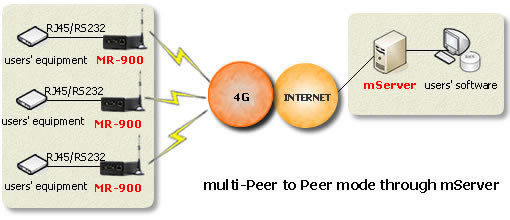

Examples
Specifications · Frequency:
TDD-LTE B38/B39/B40/B41
FDD-LTE B1/B2/B3/B4/B5/B8/B17/B20
UMTS/HSDPA/HSPA+ B1//B2/B5/B8
TD-SCDMA B34/B39
CDMA2000 1x/EVDO BC0
GSM/GPRS/EDGE 900/1800 MHz· Memory: RAM 64M FLASH 4M
· Power: +5V~+36V DC( anode inside and cathode outside)
· Max work current: 800mA@+5V DC
· Idle current: 220mA@+5V DC
· CPU frequency: 200MHZ
· Receive sensitivity: 104dbm
· Transmitting power: 23~30dbm
· Data interface: RS232/RJ45
· Configuration: RS232
· Working temperature: -20℃ ---- +65℃
· Relative humidity: 95%@+40℃
· Physical dimension: 80x104x38mmReliability
· Main CPU: 32 bit ARM processor
· Industrial grade components
· Watch-dog enabled
· built-in Linux system
· embedded TCP/IP protocolFunctions · Support 4G LTE network
· Support APN
· Configure from RS232/telnet/web
· Support remote configuration
· Support local/remote firmware update
· Support DNS proxy and Dynamic DNS (DDNS)
· Support WAN DHCP client getting static IP
· Support DHCP Server
· Support DMZ host
· Support port forwardingApplications
· Web browsing and email for small office/remote site
· Remote Utility Metering & Sub-Metering
· Vending Machines Monitoring
· Elevators & Escalators
· HVAC & Condition Monitoring
· ATM video surveillance
· Street light control -
MR-900T, developed by ETUNG, is a high speed plug & play wireless data device or as named as 4G wireless router. For small office, remote site or mobile office, MR-900T is an ideal device to access the Internet for email, web browsing, ftp and image/video transfer. It creates a fast, secure, reliable and easy-to-use wireless network for small business. It is also good for applications such as AMR or remote control.Operating voltage: +9 ~ +36V DCOperating temperature: -30°C ~ +75°CDimension: 80x104x38mmIndustrial-grade 4G/3G/2G High-speed Plug&Play
