ER-701T Industrial 4G Router
|ER-701T Brief Introduction|
ER-701T is a high speed 4G/WAN router. It works in LTE-TDD/LTE-FDD 4G networks, and can access internet and transfer video and data with high speed. In LTE-TDD network, the maximum uplink speed can reach 18Mbps, and downlink speed can reach 61Mbps; and in LTE-FDD network, the maximum uplink speed can reach 50Mbps, and downlink speed can reach 100Mbps.
ER-701T can use WAN or WIFI network as well: in case cable network is available, WAN (LAN) port can be used to access cable network; and in case WIFI is available, ER-701T can be configured to access internet via WIFI. 4G, WAN and WIFI are all supported by ER-701T, this greatly facilitates customer’s project deployment that customers do not have to choose different devices from different suppliers because of different network access at the spot. This can not only save procurement cost, but also reduce maintenance effort for the projects.
ER-701T has extended 4 Ethernet interfaces, and can connect 4 PCs via Ethernet cable at the same time. Thus when customers have multiple PCs at the spot that need to access the internet, they do not have to deploy additional hub or wireless communication devices. This can reduce device procurement cost and maintenance cost as well.
ER-701T has WIFI AP functionality as well, and supports 802.11b/g/n protocol. The highest speed can be 150Mbps. Either mobile phones, PCs or other devices that has WIFI functionality, can bind Er-701T’s WIFI access point and share Internet access via ER-701T. This greatly extends the number of devices that can connect with ER-701T at the same time. Meanwhile, with ER-701T’s WIFI and extended Ethernet interfaces, customers can build a small local area network, and all devices that connect to ER-701T via WIFI or physical Ethernet cable are in the same local area network, and can communicate each other freely.
ER-701T has built-in WEB configuration interface, and is easy to use. ER-701T supports static routing, DMZ host, port forwarding and VPN, and has performance tuning function for high speed wireless applications as well. It can work stably and reliably in unattended environment.
ER-701T can connect quickly with web camera, video server, PLC and IPC, and transfer data from the customer device that connects with ER-701T to a host in the internet, so as to transfer data remotely and transparently. ER-701T can be widely used in industries such as banking, road transportation, power system, environment protection and industrial controlling.
ER-701T working mechanism

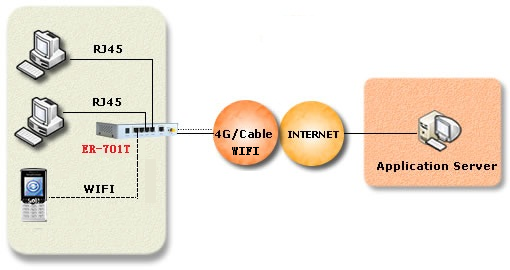

PC connects to one of ER-701T’s LAN interfaces with a cross cable. After power on it dials via 4G wireless network (or: connects with WAN cable network or WIFI) and connects to the internet, then PCs can share the internet via ER-701T, and access the application server. At the same time, using ER-701T’s WIFI functionality, PCs (or other devices that support WIFI) can connect to ER-701T’s WIFI access point, instead of connecting with Ethernet cable, to share the Internet access. Meanwhile, ER-701T can be used to build remote virtual LAN with VPN, monitor video remotely, and publish programs remotely on LED color screens, etc.

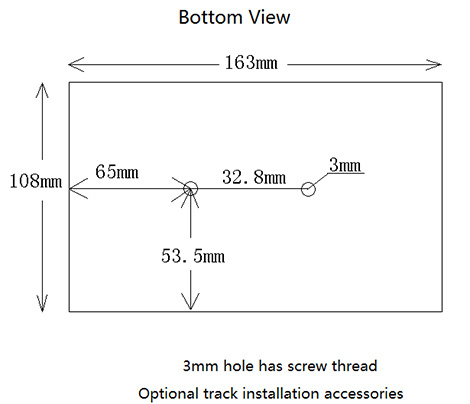

ER-701T dimension with shell
. Power Supply: +12 ~ +36V wide range of voltage input
· Power Connector: inner(+) outer(-), and wire connector
· Data Interface: 4 RJ45 LAN interfaces, 1 RJ45 WAN/LAN interface, 1 RS232 user serial interface
· Memory: RAM 64M FLASH 4M
TDD-LTE Band 38/39/40/41
FDD-LTE Band 1/3/5
TD-SCDMA Band 34/39
HSPA+ Band 1/5
UMTS Band 1/5
WIFI IEEE 802.11n/g/b: 2.4GHz
· Working Current: 300mA@+12V DC
· Standby Current: 180mA@+12V DC
· Temperature: -30oC ~ +70oC
· Humidity: 95%@+40oC
· Dimension: 165*108*33mm
·Support DHCP server
·Support DNS Proxy
·Support port forwarding
·Support DMZ host(IP address mapping)
·Support dynamic domain auto-registration
·Support configuring static route table
·Support real-time speed display of wireless network
·Support configuring with serial port, telnet and web interface
·Support flow control per month, and hours per month for internet access
·Support flow wakeup, phone wakeup and SMS wakeup
ETung 4G router takes the leading role in the industry not only from hardware industrialization, design rationality, software convenience and usage flexibility, but also from its reliability. Its technical advantages are easy to see:
· Support 4G TDD-LTE/FDD-LTE and 3G/2G network modes;
· Support network mode auto adaption;
· Support dynamic domain auto-registration, domain resolving software is not needed;
· Support Telnet and web configuration;
· Support four (+1 WAN/LAN)RJ45 Ethernet interfaces, at most five devices can connect with it via Ethernet cable;
· Support WAN, and offers cable network access to Internet;
· Support WIFI access point, devices supporting WIFI can connect with it quickly to build a small LAN;
· Support VPN to build virtual LAN, and simply change fixed line to wireless line;
· Support serial port DTU function, Ethernet and serial interfaces can be used at the same time, and then video monitoring and data transfer can be done with the same router;
· Support configuring 4G router remotely via SMS and from server side;
· Support soft and hard watch dog, keep alive all the time;
· Support APN name auto adaption, adaptive universally with default configuration;
· Support LBS location function to check device location at any time;
· Support "eYun" platform, server building not needed and plug-and-play.

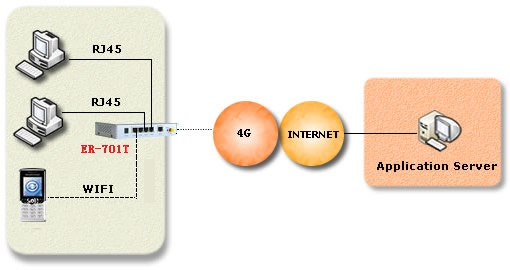

Access Internet via 4G network

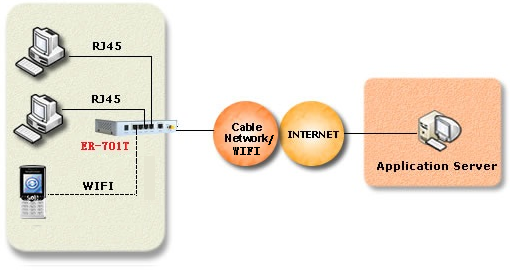

Access Internet via cable/WIFI network

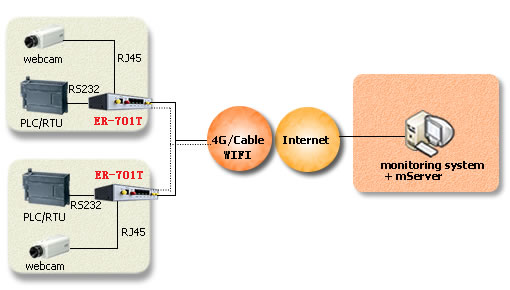

Use ER-701T Ethernet and serial interfaces at the same time

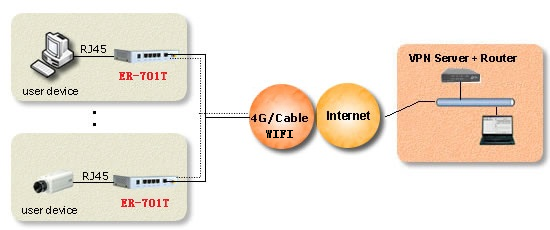

Use ER-701T to access LAN remotely via VPN
Industrial-grade 4G/3G/2G High-speed Plug&Play
