ER-600 Industrial 4G Router
|ER-600 Brief Introduction|
ER-600 is an industrial grade 4G router with the capability of high-speed Internet access, high-speed video and data transmission. It is also a cost-effective 4G wireless router in industrial sector.
ER-600 not only supports all LTE network from mobile operators, but also has two RJ-45 Ethernet interfaces, one of which (LAN1) can be used as WAN as well. It has one RS232 and one RS485 serial interfaces. Ethernet interfaces and serial interfaces can be used at the same time. It breaks through network limits, so that it not only supports 4G (FDD-LTE/TD-LTE) network, but also 3G (TD-SCDMA/WCDMA/EVDO) or 2G (GPRS/EDGE/GSM/CDMA) networks, and can automatically switch between different networks. In case there is no 4G network or SIM card does not support 4G, ER-600 can automatically switch to 3G or 2G networks.
ER-600 has WIFI functionality as well, and supports 802.11b/g/n protocol. The highest speed transmission can be 150Mbps. Either mobile phones, PCs or other devices that have WIFI functionality, can get ER-600’s WIFI access point and share Internet access via ER-600. This greatly extends the number of devices that can connect with ER-600 at the same time.
ER-600 can use WAN or WIFI network: in case of cable network is available, WAN (LAN1) port can be used to access cable network; and in case of WIFI is available, ER-600 can be configured to access internet via WIFI. 4G, WAN and WIFI are all supported by ER-600, this greatly facilitates customer’s project deployment that customers do not have to choose different devices from different suppliers because of different network access at the spot. This can not only save procurement cost, but also reduce maintenance effort for the projects.
GPS model can be embedded into ER-600, to display the location of device. Set time interval of transmitting GPS location data, then after ER-600 connects to data center, it will transmit location data to data center with the predefined time interval. Data center can also ask for GPS location data at any time by sending commands. Besides, the device connecting ER-600 can also send AT command via RS232/RS485 serial port to ask for location information.
ER-600 is easy to use, and is plug-n-play without any configuration. Together with eTung’s eYun platform and Virhub/Vircom software, it can be easy to integrate with PLC programming software, and there is no extra integration effort. ER-600 is stable and easy-to-use, thus greatly facilitates project deployment.
ER-600 working mechanism
ER-600 connects with PC via Ethernet cross cable, and set PC’s IP address as automatically obtained IP. After power on, it dials up into 4G network (or, via cable/WIFI network) and access Internet, then PC can access Internet via ER-600, and then access the application server.
At the same time, ER-600 can be a WIFI AP, and PC (or other devices that support WIFI) can connect to ER-600’s AP with its own WIFI network adapter, instead of using network cable, and then access Internet via ER-600.
Meanwhile, ER-600 can be used to build remote virtual LAN with Virhub or VPN, to monitor video remotely, and publish programs remotely on LED color screens, acquire data and control PLC remotely, etc.
. Power Supply: +12 ~ +48V wide range of voltage input
· Power Connector: inner(+) outer(-)
· Max Current: 350mA@+12V DC
· Standby Current: 250mA@+12V DC
Three-Band FDD-LTE B1/B3/B8
Four-Band TDD-LTE B38/B39/B40/B41
Dual-Band UMTS/HSDPA/HSPA+ B1/B8
Dual-Band TD-SCDMA B34/B39
Single-Band CDMA1X/EVDO BC0
Dual-Band GSM/GPRS/EDGE 900/1800MHz
WIFI IEEE 802.11n/g/b: 2.4GHz
GPS L1, 1575.42MHz?
· Data Interface: RS232/RS485, two RJ45 Ethernet interfaces
· Temperature: -30oC ~ +80oC
· Humidity: 95%@+40oC

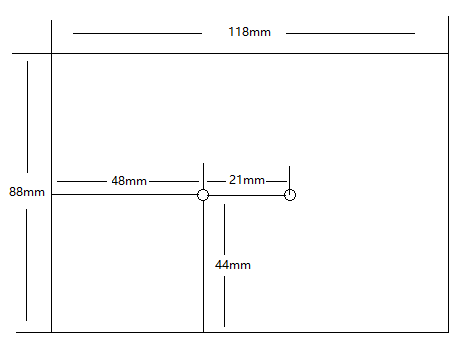

· Dimension: 88x118x34mm (excluding antenna and handle)
·Support DHCP server
·Support DNS Proxy
·Support port forwarding
·Support DMZ host(IP address mapping)
·Support dynamic domain auto-registration
·Support configuring static route table
·Support real-time speed display of wireless network
·Support configuring with serial port, telnet and web interface
·Support serial port DTU function, Ethernet and serial interfaces can be used at the same time
·Support flow control per month, and hours per month for internet access
·Support flow wakeup, phone wakeup and SMS wakeup

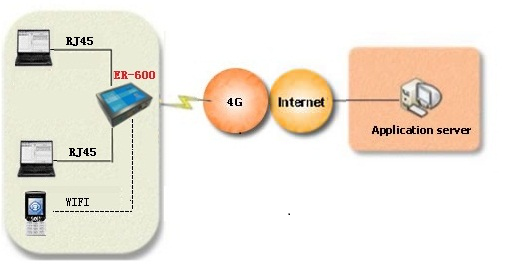

Access Internet via 4G network

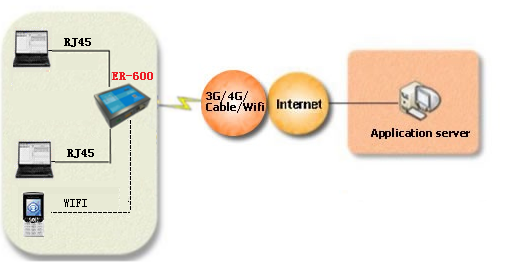

Access Internet via cable/WIFI network

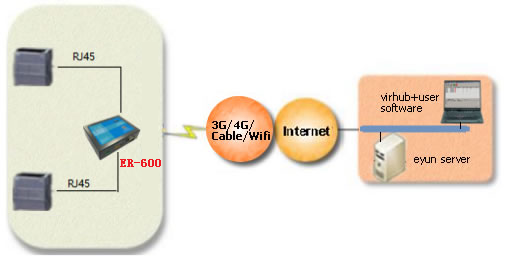

Implement virtual LAN via ER-600’s Virhub functionality

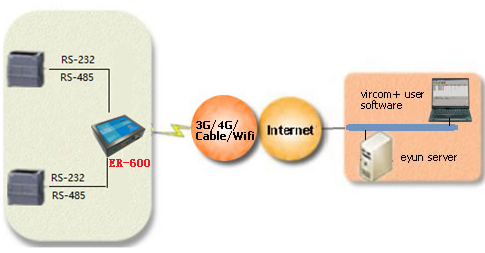

Implement device remote control via ER-600 and Vircom functionality
Use ER-600 to access LAN remotely via VPN
Industrial-grade 4G/WIFI Plug&Play
